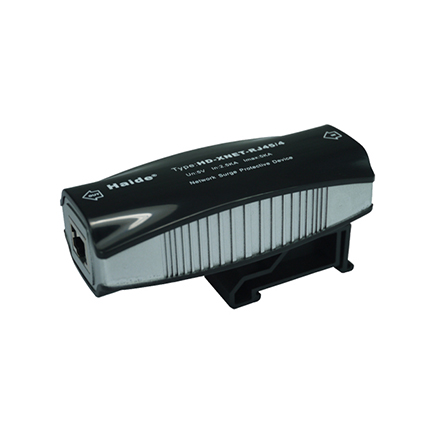

Computer
network signal surge protector is designed according to the standard of
IEC electric surge protector.It is considered fully that the electrode
capacitance and distributed capacitance would lesson data signal with
small insertion loss and lower output residual voltage.It has superior
transmisson performance ,quick action,less insertion loss,RJ45
interface,4 wires and 8 wires protection and 100M bandwidth.
|
Model
|
HD-XNET-RJ45/4
|
HD-XNET-RJ45/8
|
|
Rated voltage Un
|
5V
|
12V
|
|
Maximum continuous working voltage Uc
|
12V
|
15V
|
|
Nominal discharge current In （8/20μs）
|
2.5KA
|
300A
|
|
Maximum discharging current Imax（8/20μs）
|
5KA
|
600A
|
|
Voltage
protection level Up
|
（X-X）≤70V
|
（X-X）≤85V
|
|
（X-G）≤400V
|
（X-G）≤85V
|
|
Series impedance R
|
1Ω
|
|
|

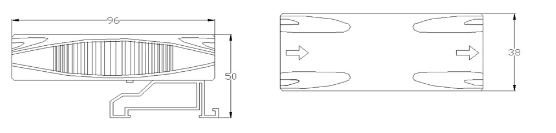

External dimension
|
96×50×38mm
|
|
Number of guard wire
|
1，2，3，6wire
|
8-wire
full protection
|
|
Response time Ta
|
≤1ns
|
|
Insertion loss
|
≤0.2dB
|
|
Operating temperature range Tup
|
-40℃to +70℃
|
|
Protection grade
|
IP20
|
|
Sheathing material
|
Shielding plastic fire-proof material
|
|
Mode of connection
|
In series
|
|
Interface mode
|
RJ45
|
Installation method：
Put
an arrester in series at the leading end of the line interface of the
protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line
end.Connect the arrester ground terminal and lightning protection ground
lead well (suggested earth resistance≤4Ω)
