Series connection type power surge protector
This product adopts ultra-fast conduction of large-capacity surge absorbing element "zinc oxide varistor" as the core component, with normal or failure indication function, and installed over-current thermal tripping mechanism, in case of failure can be automatically detached from the grid. Meets electrical safety standards.
With a variety of shapes of power outlets, it is suitable for all electrical equipment that meets national standards.
|
Model
|

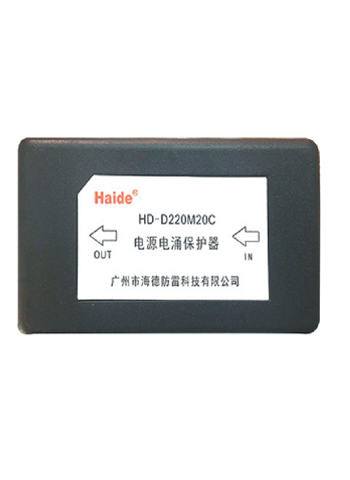

HD-D220M20C
|
|
Nominal working voltage Un
|
220V
|
|
Maximum continuous working voltage Uc
|
275V
|
|
Nominal discharge current In（8/20μs）
|
10KA
|
|
Maximum discharging current Imax（8/20μs）
|
20KA
|
|
Voltage protection level Up
|
≤1.2KV
|
|
Response time Ta
|
≤25ns
|
|
Over-current protection
|
10A
|
|
Fault indication
|
Yes
|
|
Protection grade
|
IP40
|
|
External dimension
|
98*50*38mm
|
|
Sheathing material
|
Flame retardant thermoplastic material
|
|
Mode of connection
|

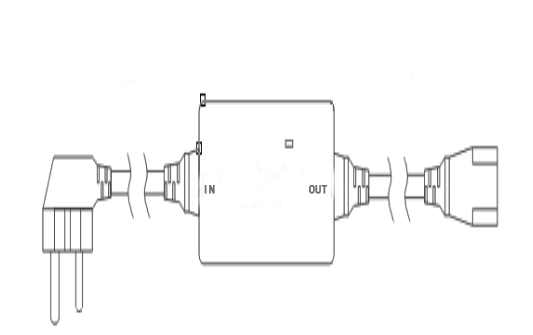

In Series
|
Installation method：
When the plug of the lightning protection socket is plugged into the mains jack, please make sure that the mains line is normal and the power line (L) and neutral line (N) have no errors.. You can connect the plug of the lightning protection socket to mains jack to ensure the reliability.
When a long-distance overhead line enters a building, the neutral line is grounded repeatedly, and the grounded end of the connection socket or lightning protection ground wire is connected well.
(Recommended grounding resistance ≤ 4Ω)
