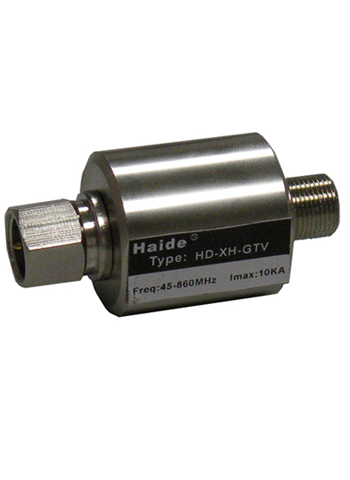

Television line lightning arrester

TV trunk surge protector is suitable for lightning and surge protection of CATV system equipment such as cable TV signal lines, TVs, and TV amplifiers,and so on . It has wide range of applicable frequency, large discharge leakage current, double protections of overvoltage and voltage limiting. RCA interface or F interface, installation and maintenance is very convenient, the highest flow capacity can be up to 10KA, insertion loss of less than 0.2dB, data transfer rate <860M.

Model	HD-XH-GTV
Working frequency	45~860 MHz
Nominal discharge current In (8/20ms)	5KA
Maximum discharge current Imax (8/20ms)	10KA

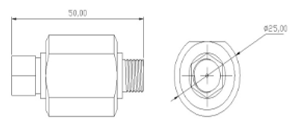

External dimension	502525mm
Response time Ta	≤100ns
Working temperature range Tup	-40℃至+70℃
Insertion loss	≤0.2dB
Input-output impendence	75W
Degrees of protection	IP30
Enclosure material	Shielded metallic aluminum
Interface mode	CATV/F port of the Metrix system
Applied range	cable television line

Installation method：

Put an arrester in series at the leading end of the line interface of the protected equipment.”O(jiān)UT” is equipment end and “IN” is incoming line end.Connect the arrester ground terminal and lightning protection ground lead well (suggested earth resistance≤4Ω)
